Mixing things up a bit...

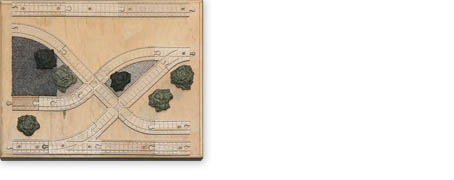

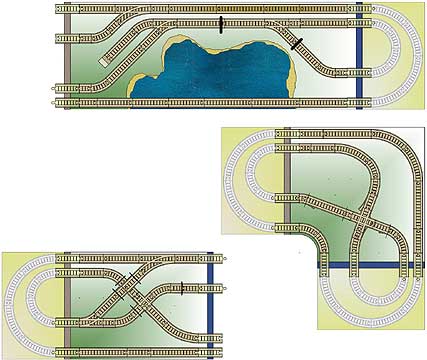

4x20.gif (55 bytes)These next three modules include a corner (you may want to build two) and a pair of crossover segments that allow the standard segments to be rotated 180° and back again. These segments
dramatically expand the number of possibilities.

4x20.gif (55 bytes)The ‘Bay & Bridge’ module can be constructed as a flat segment but is transformed when a recessed bay and elevated bridge deck are incorporated. I found it desirable to custom mitre the track sections for both the ‘Corner’ and ‘Criss Cross’ segments to ensure a clean, tight fit in such a confined space...
